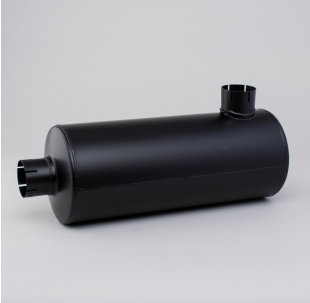

Donaldson Filtration M085409 MUFFLER, ROUND STYLE 3/STYLE 4

Attributes
Flow Direction Either
Inlet Diameter 3.02 inch (76.66 mm)
Outlet Diameter 3.02 inch (76.66 mm)
Body Diameter Maximum 8.46 inch (215 mm)
Body Length 19.75 inch (501.6 mm)
Overall Length 24.27 inch (616.4 mm)
Rated Flow LR 636 cfm (18 m³/min)
Rated Flow MR 883 cfm (25 m³/min)
Rated Flow HR 883 cfm (25 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.01 inch Hg (51 mm Hg)
Attenuation LR 12 dBA
Attenuation HR 18 dBA
Inlet Clock Position 6:00
Style Style 3/Style 4
Price Type E
Packaged Dimensions
Packaged Length 27.25 inch (69.215 cm)
Packaged Width 11.63 inch (29.528 cm)
Packaged Height 8.75 inch (22.225 cm)
Packaged Weight 15.76 lb (7.153 kg)
Packaged Volume 1.60 ft3 (0.045 m3)
Pieces Per Pallet 30
Other Information
Country of Origin United States
NMFC Code 125850-01
HTS Code 8708925000
UPC Code 742330113905
