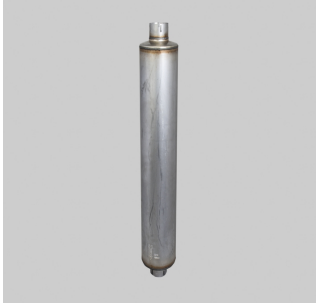

Donaldson Filtration M085421 MUFFLER, ROUND STYLE 1

Attributes
Flow Direction Inlet-Outlet
Inlet Diameter 4.02 inch (102.11 mm)
Outlet Diameter 4.02 inch (102.11 mm)
Body Diameter Maximum 8.50 inch (216 mm)
Body Length 34.37 inch (873 mm)
Overall Length 40.00 inch (1016 mm)
Rated Flow LR 1211 cfm (34.3 m³/min)
Rated Flow MR 1713 cfm (48.5 m³/min)
Rated Flow HR 2098 cfm (59.4 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 12 dBA
Attenuation HR 18 dBA
Style Style 1
Price Type E
Packaged Dimensions
Packaged Length 43.50 inch (110.490 cm)
Packaged Width 8.90 inch (22.606 cm)
Packaged Height 8.90 inch (22.606 cm)
Packaged Weight 22.00 lb (9.988 kg)
Packaged Volume 1.99 ft3 (0.056 m3)
Pieces Per Pallet 12
Other Information
Country of Origin United States
NMFC Code 125850-01
HTS Code 8708925000
UPC Code 742330132166
