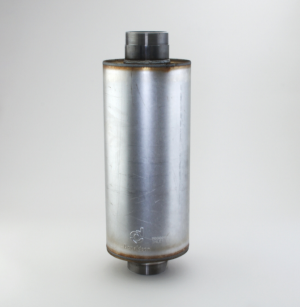

Donaldson Filtration M090009 MUFFLER, ROUND STYLE 1

Attributes
Flow Direction Inlet-Outlet
Inlet Diameter 4.02 inch (102 mm)
Outlet Diameter 4.02 inch (102 mm)
Body Diameter Maximum 8.97 inch (227.84 mm)
Body Length 19.50 inch (495.3 mm)
Overall Length 26.00 inch (660.4 mm)
Rated Flow LR 1021 cfm (28.9 m³/min)
Rated Flow MR 1441 cfm (40.8 m³/min)
Rated Flow HR 1766 cfm (50 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 10 dBA
Attenuation HR 15 dBA
Style Style 1
Price Type E
Packaged Dimensions
Packaged Length 28.63 inch (72.708 cm)
Packaged Width 9.50 inch (24.130 cm)
Packaged Height 9.50 inch (24.130 cm)
Packaged Weight 19.55 lb (8.873 kg)
Packaged Volume 1.50 ft3 (0.042 m3)
Pieces Per Pallet 20
Other Information
Country of Origin United States
NMFC Code 125850-01
HTS Code 8708925000
UPC Code 742330005040
