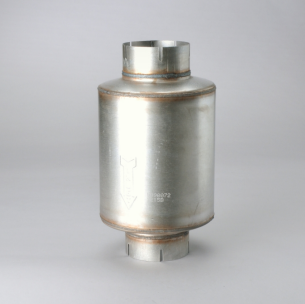

Donaldson Filtration M090072 RESONATOR, 5 IN (127 MM)

Attributes
Inlet Diameter 5.03 inch (127.64 mm)
Outlet Diameter 5.03 inch (127.64 mm)
Body Diameter Maximum 8.97 inch (227.84 mm)
Body Length 10.00 inch (254 mm)
Overall Length 16.50 inch (419 mm)
Attenuation LR 3 dBA
Attenuation HR 6 dBA
Price Type E
Packaged Dimensions
Packaged Length 9.50 inch (24.130 cm)
Packaged Width 9.50 inch (24.130 cm)
Packaged Height 18.50 inch (46.990 cm)
Packaged Weight 9.50 lb (4.313 kg)
Packaged Volume 0.97 ft3 (0.027 m3)
Pieces Per Pallet 40
Other Information
Country of Origin United States
NMFC Code 125850-02
HTS Code 8708925000
UPC Code 742330005057
