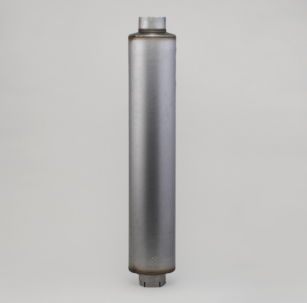

Donaldson Filtration M090074 MUFFLER, ROUND STYLE 1

Attributes
Flow Direction Inlet-Outlet
Inlet Diameter 5.03 inch (127.64 mm)
Outlet Diameter 5.03 inch (127.64 mm)
Body Diameter Maximum 9.01 inch (228.85 mm)
Body Length 44.44 inch (1128.78 mm)
Overall Length 51.00 inch (1295.4 mm)
Rated Flow LR 1667 cfm (47.2 m³/min)
Rated Flow MR 2355 cfm (66.7 m³/min)
Rated Flow HR 2885 cfm (81.7 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 13 dBA
Attenuation HR 18 dBA
Style Style 1
Price Type E
Packaged Dimensions
Packaged Length 52.75 inch (133.985 cm)
Packaged Width 9.50 inch (24.130 cm)
Packaged Height 9.75 inch (24.765 cm)
Packaged Weight 28.95 lb (13.141 kg)
Packaged Volume 2.83 ft3 (0.079 m3)
Pieces Per Pallet 16
Other Information
Country of Origin United States
NMFC Code 125850-01
HTS Code 8708925000
UPC Code 742330005064
