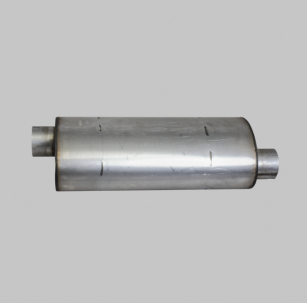

Donaldson Filtration M090280 MUFFLER, OVAL STYLE 2

Attributes
Flow Direction Inlet-Outlet
Inlet Diameter 4.02 inch (102.11 mm)
Outlet Diameter 4.02 inch (102.11 mm)
Body Diameter Minimum 8.25 inch (209.6 mm)
Body Diameter Maximum 11.50 inch (292 mm)
Body Length 26.00 inch (660.4 mm)
Overall Length 3.51 inch (89.15 mm)
Rated Flow LR 992 cfm (28.1 m³/min)
Rated Flow MR 1402 cfm (39.7 m³/min)
Rated Flow HR 1716 cfm (48.6 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 12 dBA
Attenuation HR 18 dBA
Inlet Clock Position 3:00
Outlet Clock Position 9:00
Style Style 2
Price Type E
Packaged Dimensions
Packaged Length 37.19 inch (94.456 cm)
Packaged Width 12.50 inch (31.750 cm)
Packaged Height 10.00 inch (25.400 cm)
Packaged Weight 24.10 lb (10.941 kg)
Packaged Volume 2.69 ft3 (0.075 m3)
Pieces Per Pallet 16
Other Information
Country of Origin United States
NMFC Code 125850-02
HTS Code 8708925000
UPC Code 742330005132
