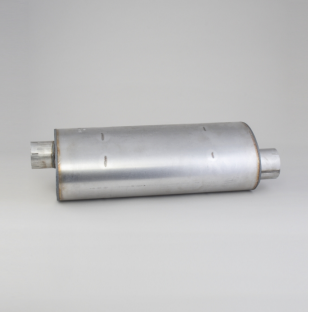

Donaldson Filtration M090520 MUFFLER, OVAL STYLE 2

Attributes
Flow Direction Inlet-Outlet
Inlet Diameter 3.51 inch (89.28 mm)
Outlet Diameter 4.02 inch (102.11 mm)
Body Diameter Minimum 8.25 inch (209.6 mm)
Body Diameter Maximum 11.50 inch (292 mm)
Body Length 26.00 inch (660.4 mm)
Overall Length 32.25 inch (819.2 mm)
Rated Flow LR 992 cfm (28.1 m³/min)
Rated Flow MR 1402 cfm (39.7 m³/min)
Rated Flow HR 1716 cfm (48.6 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 13 dBA
Attenuation HR 18 dBA
Inlet Clock Position 3:00
Outlet Clock Position 9:00
Style Style 2
Price Type E
Packaged Dimensions
Packaged Length 37.00 inch (93.979 cm)
Packaged Width 11.88 inch (30.175 cm)
Packaged Height 8.75 inch (22.226 cm)
Packaged Weight 23.30 lb (10.578 kg)
Packaged Volume 2.22 ft3 (0.062 m3)
Pieces Per Pallet 20
Other Information
Country of Origin United States
NMFC Code 125850-03
HTS Code 8708925000
UPC Code 742330005200
