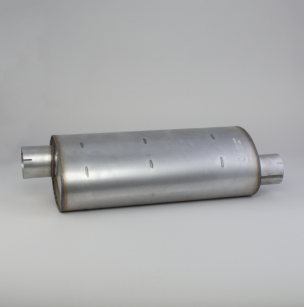

Donaldson Filtration M090534 MUFFLER, OVAL STYLE 2

Attributes
Flow Direction Inlet-Outlet
Inlet Diameter 4.02 inch (102.11 mm)
Outlet Diameter 4.02 inch (102.11 mm)
Body Diameter Minimum 8.25 inch (209.6 mm)
Body Diameter Maximum 11.50 inch (292 mm)
Body Length 26.00 inch (660.4 mm)
Overall Length 33.75 inch (857.2 mm)
Rated Flow LR 1024 cfm (29 m³/min)
Rated Flow MR 1448 cfm (41 m³/min)
Rated Flow HR 1776 cfm (50.3 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 13 dBA
Attenuation HR 18 dBA
Inlet Clock Position 3:00
Outlet Clock Position 9:00
Style Style 2
Price Type E
Packaged Dimensions
Packaged Length 37.00 inch (93.980 cm)
Packaged Width 12.00 inch (30.480 cm)
Packaged Height 9.00 inch (22.860 cm)
Packaged Weight 24.25 lb (11.010 kg)
Packaged Volume 2.31 ft3 (0.065 m3)
Pieces Per Pallet 12
Other Information
Country of Origin United States
NMFC Code 125850-01
HTS Code 8708925000
UPC Code 742330005217
