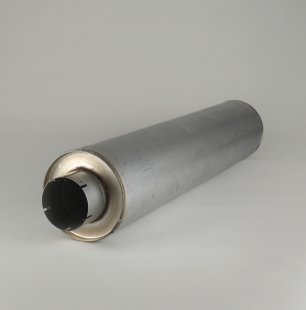

Donaldson Filtration M090535 MUFFLER, ROUND STYLE 1

Attributes
Flow Direction Inlet-Outlet
Inlet Diameter 5.03 inch (127.64 mm)
Outlet Diameter 5.03 inch (127.64 mm)
Body Diameter Maximum 9.01 inch (228.9 mm)
Body Length 44.44 inch (1128.8 mm)
Overall Length 51.00 inch (1295.4 mm)
Rated Flow LR 2338 cfm (66.2 m³/min)
Rated Flow MR 3097 cfm (87.7 m³/min)
Rated Flow HR 3260 cfm (92.3 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 12 dBA
Attenuation HR 17 dBA
Style Style 1
Price Type E
Packaged Dimensions
Packaged Length 55.13 inch (140.018 cm)
Packaged Width 9.63 inch (24.448 cm)
Packaged Height 9.50 inch (24.130 cm)
Packaged Weight 29.01 lb (13.171 kg)
Packaged Volume 2.92 ft3 (0.082 m3)
Pieces Per Pallet 16
Other Information
Country of Origin United States
NMFC Code 125850-02
HTS Code 8708925000
UPC Code 742330005224
