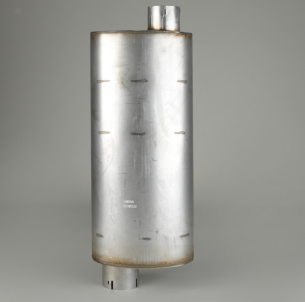

Donaldson Filtration M090538 MUFFLER, OVAL STYLE 2

Attributes
Flow Direction Inlet-Outlet
Inlet Diameter 4.02 inch (102.11 mm)
Outlet Diameter 3.51 inch (89.28 mm)
Body Diameter Minimum 8.25 inch (209.6 mm)
Body Diameter Maximum 11.50 inch (292 mm)
Body Length 26.00 inch (660.4 mm)
Overall Length 32.25 inch (819.2 mm)
Rated Flow LR 773 cfm (21.9 m³/min)
Rated Flow MR 1095 cfm (31 m³/min)
Rated Flow HR 1338 cfm (37.9 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 16 dBA
Attenuation HR 21 dBA
Inlet Clock Position 3:00
Outlet Clock Position 12:00
Style Style 2
Price Type E
Packaged Dimensions
Packaged Length 37.00 inch (93.980 cm)
Packaged Width 12.25 inch (31.115 cm)
Packaged Height 9.75 inch (24.765 cm)
Packaged Weight 24.80 lb (11.259 kg)
Packaged Volume 2.56 ft3 (0.072 m3)
Pieces Per Pallet 16
Other Information
Country of Origin United States
NMFC Code 125850-02
HTS Code 8708925000
UPC Code 742330005231
