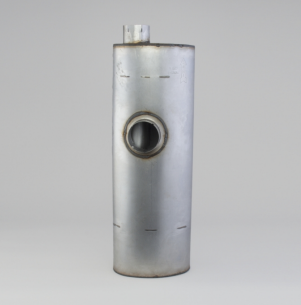

Donaldson Filtration M090547 MUFFLER, OVAL STYLE 4

Attributes
Flow Direction Inlet-Outlet
Inlet Diameter 3.51 inch (89.28 mm)
Outlet Diameter 4.02 inch (102.11 mm)
Body Diameter Minimum 8.21 inch (208.5 mm)
Body Diameter Maximum 11.46 inch (291.1 mm)
Body Length 32.56 inch (827 mm)
Overall Length 35.16 inch (893 mm)
Rated Flow LR 865 cfm (24.5 m³/min)
Rated Flow MR 1222 cfm (34.6 m³/min)
Rated Flow HR 1501 cfm (42.5 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 13 dBA
Attenuation HR 18 dBA
Inlet Clock Position 9:00
Outlet Clock Position 7:00
Style Style 4
Price Type E
Packaged Dimensions
Packaged Length 39.25 inch (99.695 cm)
Packaged Width 12.00 inch (30.480 cm)
Packaged Height 12.00 inch (30.480 cm)
Packaged Weight 25.26 lb (11.466 kg)
Packaged Volume 3.27 ft3 (0.092 m3)
Pieces Per Pallet 16
Other Information
Country of Origin United States
NMFC Code 125850-01
HTS Code 8708925000
UPC Code 742330005262
