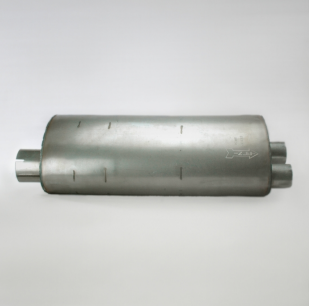

Donaldson Filtration M090563 MUFFLER, OVAL STYLE 2A

Attributes
Flow Direction Inlet-Outlet
Inlet Diameter 2.76 inch (70.23 mm)
Outlet Diameter 4.02 inch (102.11 mm)
Body Diameter Minimum 8.25 inch (209.6 mm)
Body Diameter Maximum 11.50 inch (292 mm)
Body Length 27.00 inch (685.8 mm)
Overall Length 32.75 inch (831.8 mm)
Rated Flow LR 565 cfm (16 m³/min)
Rated Flow MR 802 cfm (22.7 m³/min)
Rated Flow HR 982 cfm (27.8 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 15 dBA
Attenuation HR 18 dBA
Inlet Clock Position 9:00-3:00
Outlet Clock Position 3:00
Style Style 2A
Price Type E
Packaged Dimensions
Packaged Length 37.25 inch (94.615 cm)
Packaged Width 11.50 inch (29.210 cm)
Packaged Height 8.88 inch (22.543 cm)
Packaged Weight 24.83 lb (11.271 kg)
Packaged Volume 2.20 ft3 (0.062 m3)
Pieces Per Pallet 3
Other Information
Country of Origin United States
NMFC Code 125850-02
HTS Code 8708925000
UPC Code 742330005286
