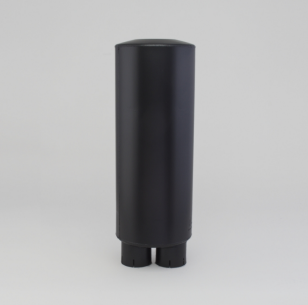

Donaldson Filtration M091049 MUFFLER, ROUND STYLE 5

Attributes
Flow Direction Inlet-Outlet
Inlet Diameter 3.51 inch (89.28 mm)
Outlet Diameter 3.51 inch (89.28 mm)
Body Diameter Maximum 9.00 inch (228.6 mm)
Body Length 21.75 inch (552.4 mm)
Overall Length 26.44 inch (671.6 mm)
Rated Flow LR 865 cfm (24.5 m³/min)
Rated Flow MR 1201 cfm (34 m³/min)
Rated Flow HR 1526 cfm (43.2 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 12 dBA
Attenuation HR 18 dBA
Inlet Clock Position 6:00
Outlet Clock Position 12:00
Style Style 5
Price Type E
Packaged Dimensions
Packaged Length 28.75 inch (73.025 cm)
Packaged Width 9.50 inch (24.130 cm)
Packaged Height 10.00 inch (25.400 cm)
Packaged Weight 5.00 lb (2.270 kg)
Packaged Volume 1.58 ft3 (0.044 m3)
Pieces Per Pallet 5
Other Information
Country of Origin United States
NMFC Code 125850-02
HTS Code 8708925000
UPC Code 742330113967
