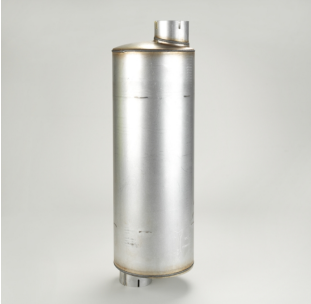

Donaldson Filtration M100048 MUFFLER, ROUND STYLE 2

Attributes
Flow Direction Inlet-Outlet
Inlet Diameter 4.02 inch (102.11 mm)
Outlet Diameter 4.02 inch (102.11 mm)
Body Diameter Maximum 10.08 inch (256 mm)
Body Length 27.12 inch (688.8 mm)
Overall Length 33.50 inch (850.9 mm)
Rated Flow LR 982 cfm (27.8 m³/min)
Rated Flow MR 1391 cfm (39.4 m³/min)
Rated Flow HR 1702 cfm (48.2 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 15 dBA
Attenuation HR 20 dBA
Inlet Clock Position 6:00
Outlet Clock Position 12:00
Style Style 2
Price Type E
Packaged Dimensions
Packaged Length 34.75 inch (88.265 cm)
Packaged Width 10.50 inch (26.670 cm)
Packaged Height 10.50 inch (26.670 cm)
Packaged Weight 25.40 lb (11.532 kg)
Packaged Volume 2.22 ft3 (0.062 m3)
Pieces Per Pallet 20
Other Information
Country of Origin United States
NMFC Code 125850-01
HTS Code 8708925000
UPC Code 742330005408
