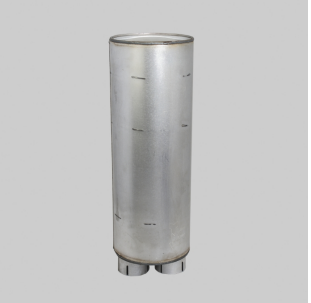

Donaldson Filtration M100049 MUFFLER, ROUND STYLE 5

Attributes
Flow Direction Inlet-Outlet
Inlet Diameter 4.02 inch (102.11 mm)
Outlet Diameter 4.02 inch (102.11 mm)
Body Diameter Maximum 10.06 inch (255.5 mm)
Body Length 27.75 inch (704.8 mm)
Overall Length 30.63 inch (777.9 mm)
Rated Flow LR 837 cfm (23.7 m³/min)
Rated Flow MR 1183 cfm (33.5 m³/min)
Rated Flow HR 1448 cfm (41 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 15 dBA
Attenuation HR 20 dBA
Inlet Clock Position 12:00
Outlet Clock Position 6:00
Style Style 5
Price Type E
Packaged Dimensions
Packaged Length 32.56 inch (82.709 cm)
Packaged Width 10.50 inch (26.670 cm)
Packaged Height 10.75 inch (27.305 cm)
Packaged Weight 27.35 lb (12.417 kg)
Packaged Volume 2.13 ft3 (0.060 m3)
Pieces Per Pallet 12
Other Information
Country of Origin United States
NMFC Code 125850-01
HTS Code 8708925000
UPC Code 742330005415
