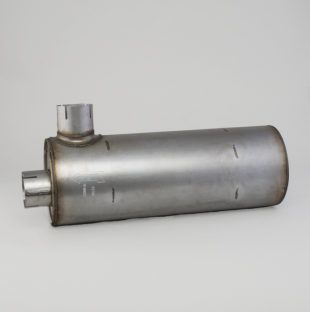

Donaldson Filtration M100052 MUFFLER, ROUND STYLE 4

Attributes
Flow Direction Inlet-Outlet
Inlet Diameter 4.02 inch (102.11 mm)
Outlet Diameter 4.02 inch (102.11 mm)
Body Diameter Maximum 10.08 inch (256 mm)
Body Length 27.75 inch (704.8 mm)
Overall Length 30.75 inch (781 mm)
Rated Flow LR 968 cfm (27.4 m³/min)
Rated Flow MR 1370 cfm (38.8 m³/min)
Rated Flow HR 1677 cfm (47.5 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 13 dBA
Attenuation HR 18 dBA
Inlet Clock Position 6:00
Outlet Clock Position 2:00
Style Style 4
Price Type E
Packaged Dimensions
Packaged Length 35.88 inch (91.123 cm)
Packaged Width 15.50 inch (39.370 cm)
Packaged Height 11.00 inch (27.940 cm)
Packaged Weight 29.00 lb (13.164 kg)
Packaged Volume 3.54 ft3 (0.099 m3)
Pieces Per Pallet 12
Other Information
Country of Origin United States
NMFC Code 125850-02
HTS Code 8708925000
UPC Code 742330005422
