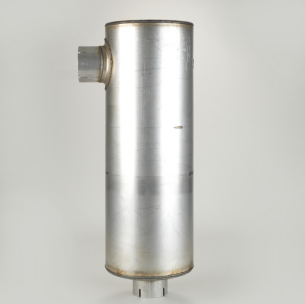

Donaldson Filtration M100146 MUFFLER, ROUND STYLE 3

Attributes
Flow Direction Inlet-Outlet
Inlet Diameter 4.02 inch (102 mm)
Outlet Diameter 4.02 inch (102 mm)
Body Diameter Maximum 10.00 inch (254 mm)
Body Length 27.99 inch (711 mm)
Overall Length 32.01 inch (813 mm)
Rated Flow LR 773 cfm (21.9 m³/min)
Rated Flow MR 1095 cfm (31 m³/min)
Rated Flow HR 1342 cfm (38 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 15 dBA
Attenuation HR 20 dBA
Inlet Clock Position 6:00
Outlet Clock Position 9:00
Style Style 3
Price Type E
Packaged Dimensions
Packaged Length 35.25 inch (89.535 cm)
Packaged Width 14.00 inch (35.560 cm)
Packaged Height 11.00 inch (27.940 cm)
Packaged Weight 27.98 lb (12.701 kg)
Packaged Volume 3.14 ft3 (0.088 m3)
Pieces Per Pallet 16
Other Information
Country of Origin United States
NMFC Code 125850-01
HTS Code 8708925000
UPC Code 742330005453
