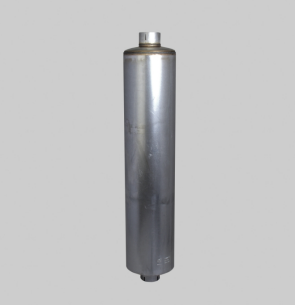

Donaldson Filtration M100464 MUFFLER, ROUND STYLE 1 WRAPPED

Attributes
Flow Direction Inlet-Outlet
Inlet Diameter 4.02 inch (102.11 mm)
Outlet Diameter 4.02 inch (102.11 mm)
Body Diameter Maximum 10.36 inch (263.1 mm)
Body Length 44.56 inch (1131.8 mm)
Overall Length 51.00 inch (1295.4 mm)
Rated Flow LR 819 cfm (23.2 m³/min)
Rated Flow MR 1158 cfm (32.8 m³/min)
Rated Flow HR 1420 cfm (40.2 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 25 dBA
Attenuation HR 35 dBA
Type Wrapped
Style Style 1
Price Type E
Packaged Dimensions
Packaged Length 53.00 inch (134.620 cm)
Packaged Width 10.50 inch (26.670 cm)
Packaged Height 11.00 inch (27.940 cm)
Packaged Weight 49.85 lb (22.632 kg)
Packaged Volume 3.54 ft3 (0.099 m3)
Pieces Per Pallet 3
Other Information
Country of Origin United States
NMFC Code 125850-01
HTS Code 8708925000
UPC Code 742330005491
