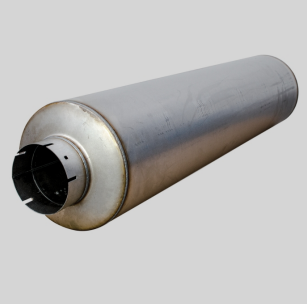

Donaldson Filtration M100465 MUFFLER, ROUND STYLE 1

Attributes
Flow Direction Inlet-Outlet
Inlet Diameter 5.03 inch (127.64 mm)
Outlet Diameter 5.03 inch (127.64 mm)
Body Diameter Maximum 10.06 inch (255.5 mm)
Body Length 44.44 inch (1128.8 mm)
Overall Length 51.00 inch (1295.4 mm)
Rated Flow LR 2875 cfm (81.41 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Attenuation LR 8 dBA
Attenuation HR 12 dBA
Style Style 1
Price Type E
Packaged Dimensions
Packaged Length 52.68 inch (133.807 cm)
Packaged Width 10.56 inch (26.822 cm)
Packaged Height 10.56 inch (26.822 cm)
Packaged Weight 23.54 lb (10.687 kg)
Packaged Volume 3.36 ft3 (0.094 m3)
Pieces Per Pallet 16
Other Information
Country of Origin United States
NMFC Code 125850-01
HTS Code 8708925000
UPC Code 742330005507
