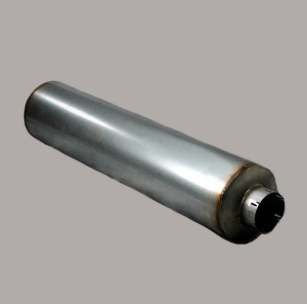

Donaldson Filtration M100580 MUFFLER, ROUND STYLE 1

Attributes
Flow Direction Inlet-Outlet
Inlet Diameter 5.03 inch (127.64 mm)
Outlet Diameter 5.03 inch (127.64 mm)
Body Diameter Maximum 10.08 inch (256 mm)
Body Length 44.44 inch (1128.78 mm)
Overall Length 51.00 inch (1295.4 mm)
Rated Flow LR 1564 cfm (44.3 m³/min)
Rated Flow MR 2214 cfm (62.7 m³/min)
Rated Flow HR 2529 cfm (71.6 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 19 dBA
Attenuation HR 25 dBA
Style Style 1
Price Type E
Packaged Dimensions
Packaged Length 53.25 inch (135.255 cm)
Packaged Width 10.69 inch (27.153 cm)
Packaged Height 10.75 inch (27.305 cm)
Packaged Weight 29.88 lb (13.566 kg)
Packaged Volume 3.54 ft3 (0.099 m3)
Pieces Per Pallet 16
Other Information
Country of Origin United States
NMFC Code 125850-01
HTS Code 8708925000
UPC Code 742330005545
