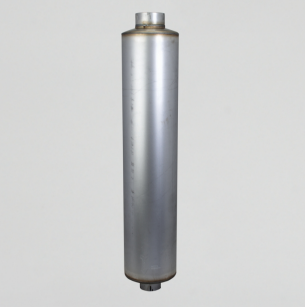

Donaldson Filtration M100695 MUFFLER, ROUND STYLE 1

Attributes
Flow Direction Inlet-Outlet
Inlet Diameter 4.02 inch (102 mm)
Outlet Diameter 5.03 inch (127.64 mm)
Body Diameter Maximum 10.06 inch (255.52 mm)
Body Length 44.25 inch (1123.95 mm)
Overall Length 51.00 inch (1295.4 mm)
Rated Flow LR 890 cfm (25.2 m³/min)
Rated Flow MR 1261 cfm (35.7 m³/min)
Rated Flow HR 1543 cfm (43.7 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 19 dBA
Attenuation HR 25 dBA
Style Style 1
Price Type E
Packaged Dimensions
Packaged Length 53.00 inch (134.620 cm)
Packaged Width 10.50 inch (26.670 cm)
Packaged Height 10.50 inch (26.670 cm)
Packaged Weight 27.00 lb (12.258 kg)
Packaged Volume 3.38 ft3 (0.095 m3)
Pieces Per Pallet 16
Other Information
Country of Origin United States
NMFC Code 125850-01
HTS Code 8708925000
UPC Code 742330005569
