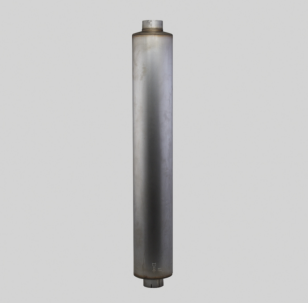

Donaldson Filtration M100807 MUFFLER, ROUND STYLE 1

Attributes
Flow Direction Inlet-Outlet
Inlet Diameter 5.03 inch (127.64 mm)
Outlet Diameter 5.03 inch (127.64 mm)
Body Diameter Maximum 10.08 inch (256 mm)
Body Length 59.75 inch (1517.6 mm)
Overall Length 66.50 inch (1689 mm)
Rated Flow LR 1504 cfm (42.6 m³/min)
Rated Flow MR 2129 cfm (60.3 m³/min)
Rated Flow HR 2610 cfm (73.9 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 19 dBA
Attenuation HR 25 dBA
Style Style 1
Price Type E
Packaged Dimensions
Packaged Length 68.00 inch (172.720 cm)
Packaged Width 10.75 inch (27.305 cm)
Packaged Height 11.00 inch (27.940 cm)
Packaged Weight 55.00 lb (24.970 kg)
Packaged Volume 4.65 ft3 (0.130 m3)
Pieces Per Pallet 5
Other Information
Country of Origin United States
NMFC Code 125850-04
HTS Code 8708925000
UPC Code 742330005620
