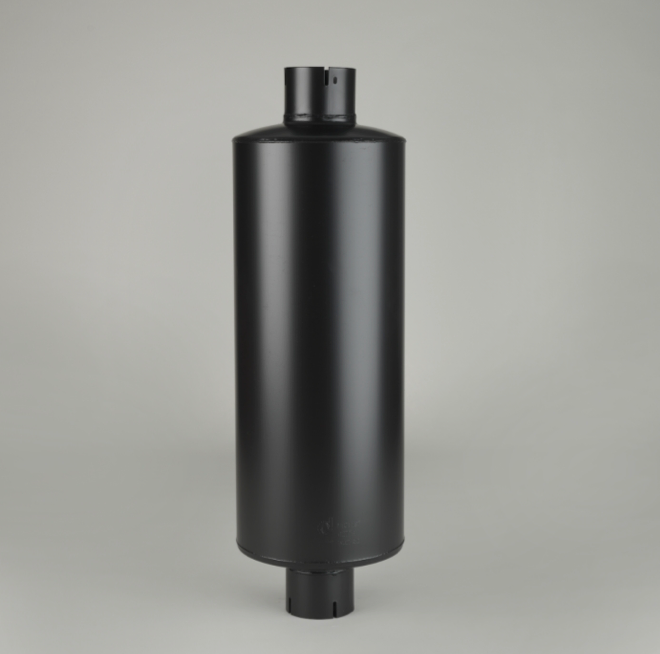

Donaldson Filtration M101167.MUFFLER, ROUND STYLE 1

Attributes

Flow Direction Inlet Diameter Outlet Diameter Body Diameter Maximum Body Length Overall Length Rated Flow LR Rated Flow MR Rated Flow HR Back Pressure Low-Range Back Pressure Mid-Range Product Specifications

M101167

MUFFLER, ROUND STYLE 1

Inlet-Outlet

4.02 inch (102.11 mm)

4.02 inch (102.11 mm)

10.08 inch (256 mm)

23.75 inch (603.2 mm)

32.00 inch (812.8 mm)

1130 cfm (32 m³/min)

1568 cfm (44.4 m³/min)

1999 cfm (56.6 m³/min)

0.98 inch Hg (25 mm Hg)

2.01 inch Hg (51 mm Hg)Back Pressure High-Range 2.99 inch Hg (76 mm Hg)

Attenuation LR 12 dBA

Attenuation HR 18 dBA

Style Style 1

Price Type E

Packaged Dimensions

Packaged Length 34.63 inch (87.948 cm)

Packaged Width 10.50 inch (26.670 cm)

Packaged Height 10.50 inch (26.670 cm)

Packaged Weight 20.53 lb (9.321 kg)

Packaged Volume 2.21 ft3 (0.062 m3)

Pieces Per Pallet 16

Other Information

Country of Origin United States

NMFC Code 125850-02

HTS Code 8708925000

UPC Code 742330113998
