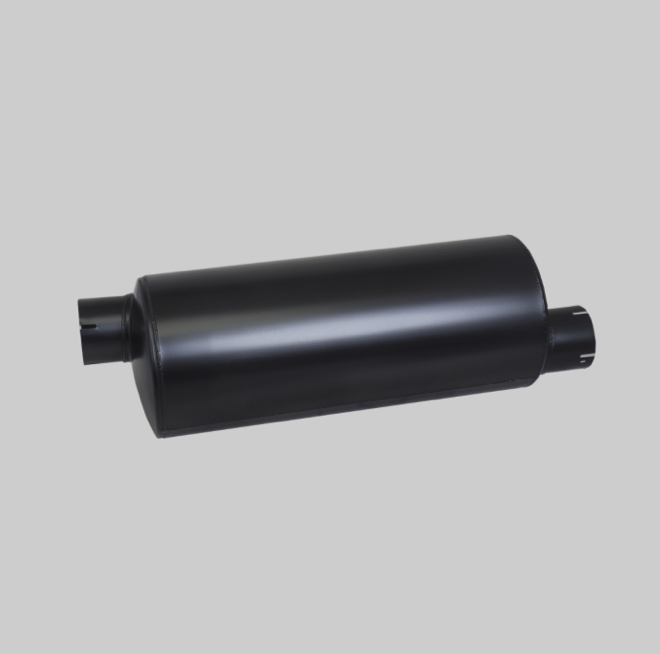

Donaldson Filtration M101168.MUFFLER, ROUND STYLE 2

Attributes

Flow Direction Inlet Diameter Outlet Diameter Body Diameter Maximum Body Length Overall Length Rated Flow LR Rated Flow MR Rated Flow HR Back Pressure Low-Range Back Pressure Mid-Range Product Specifications

M101168

MUFFLER, ROUND STYLE 2

Inlet-Outlet

4.02 inch (102.11 mm)

4.02 inch (102.11 mm)

10.08 inch (256 mm)

23.75 inch (603.2 mm)

32.00 inch (812.8 mm)

1413 cfm (40 m³/min)

1568 cfm (44.4 m³/min)

1568 cfm (44.4 m³/min)

0.98 inch Hg (25 mm Hg)

2.01 inch Hg (51 mm Hg)Back Pressure High-Range 2.01 inch Hg (51 mm Hg)

Attenuation LR 12 dBA

Attenuation HR 18 dBA

Inlet Clock Position 6:00

Outlet Clock Position 12:00

Style Style 2

Price Type E

Packaged Dimensions

Packaged Length 34.75 inch (88.265 cm)

Packaged Width 10.50 inch (26.670 cm)

Packaged Height 10.63 inch (26.988 cm)

Packaged Weight 20.74 lb (9.414 kg)

Packaged Volume 2.24 ft3 (0.063 m3)

Pieces Per Pallet 16

Other Information

Country of Origin United States

NMFC Code 125850-01

HTS Code 8708925000

UPC Code 742330114001
