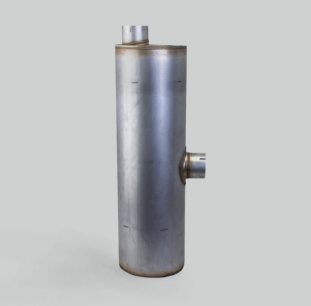

Donaldson Filtration M110148 MUFFLER, ROUND STYLE 4

Attributes
Flow Direction Inlet-Outlet
Inlet Diameter 4.02 inch (102.11 mm)
Outlet Diameter 4.02 inch (102.11 mm)
Body Diameter Maximum 11.08 inch (281.4 mm)
Body Length 36.00 inch (914.4 mm)
Overall Length 39.00 inch (990.6 mm)
Rated Flow LR 1070 cfm (30.3 m³/min)
Rated Flow MR 1511 cfm (42.8 m³/min)
Rated Flow HR 1850 cfm (52.4 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 15 dBA
Attenuation HR 20 dBA
Inlet Clock Position 6:00
Outlet Clock Position 12:00
Style Style 4
Price Type E
Packaged Dimensions
Packaged Length 3.53 FT
Packaged Width 1.29 FT
Packaged Height 1.22 FT
Packaged Weight 30.80 lb (13.983 kg)
Packaged Volume 5.56 ft3 (0.156 m3)
Pieces Per Pallet 12
Other Information
Country of Origin United States
NMFC Code 125850-05
HTS Code 8708925000
UPC Code 742330161258
