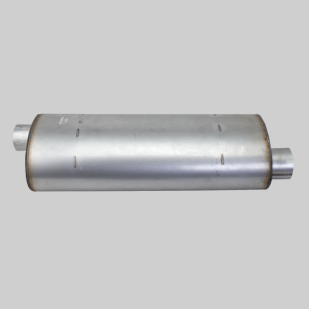

Donaldson Filtration M110189 MUFFLER, ROUND STYLE 2

Attributes
Flow Direction Inlet-Outlet
Inlet Diameter 4.02 inch (102.11 mm)
Outlet Diameter 4.02 inch (102.11 mm)
Body Diameter Maximum 11.06 inch (280.9 mm)
Body Length 36.00 inch (914.4 mm)
Overall Length 41.25 inch (1047.8 mm)
Rated Flow LR 1049 cfm (29.7 m³/min)
Rated Flow MR 1483 cfm (42 m³/min)
Rated Flow HR 1819 cfm (51.5 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 19 dBA
Attenuation HR 25 dBA
Inlet Clock Position 6:00
Outlet Clock Position 12:00
Style Style 2
Price Type E
Packaged Dimensions
Packaged Length 45.00 inch (114.300 cm)
Packaged Width 11.63 inch (29.528 cm)
Packaged Height 11.75 inch (29.845 cm)
Packaged Weight 32.37 lb (14.694 kg)
Packaged Volume 3.56 ft3 (0.100 m3)
Pieces Per Pallet 9
Other Information
Country of Origin United States
NMFC Code 125850-01
HTS Code 8708925000
UPC Code 742330005712
