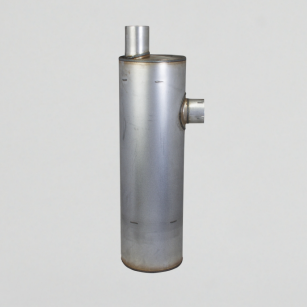

Donaldson Filtration M110311 MUFFLER, ROUND STYLE 4

Attributes
Flow Direction Inlet-Outlet
Inlet Diameter 4.00 inch (101.6 mm)
Outlet Diameter 4.00 inch (101.6 mm)
Body Diameter Maximum 11.06 inch (280.9 mm)
Body Length 36.00 inch (914.4 mm)
Overall Length 41.00 inch (1041.4 mm)
Rated Flow LR 1070 cfm (30.3 m³/min)
Rated Flow MR 1511 cfm (42.8 m³/min)
Rated Flow HR 1850 cfm (52.4 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 15 dBA
Attenuation HR 20 dBA
Inlet Clock Position 6:00
Outlet Clock Position 12:00
Style Style 4
Price Type E
Packaged Dimensions
Packaged Length 49.00 inch (124.460 cm)
Packaged Width 15.38 inch (39.053 cm)
Packaged Height 12.00 inch (30.480 cm)
Packaged Weight 22.00 lb (9.988 kg)
Packaged Volume 5.23 ft3 (0.146 m3)
Pieces Per Pallet 9
Other Information
Country of Origin United States
NMFC Code 125850-03
HTS Code 8708925000
UPC Code 742330115992
