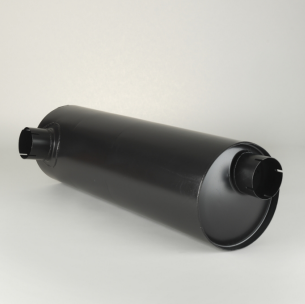

Donaldson Filtration M110479 MUFFLER, ROUND STYLE 3

Attributes
Flow Direction Inlet-Outlet
Inlet Diameter 4.02 inch (102.11 mm)
Outlet Diameter 4.02 inch (102.11 mm)
Body Diameter Maximum 11.08 inch (281.4 mm)
Body Length 36.00 inch (914.4 mm)
Overall Length 39.00 inch (990.6 mm)
Rated Flow LR 929 cfm (26.3 m³/min)
Rated Flow MR 1314 cfm (37.2 m³/min)
Rated Flow HR 1607 cfm (45.5 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 19 dBA
Attenuation HR 25 dBA
Inlet Clock Position 6:00
Outlet Clock Position 3:00
Style Style 3
Price Type E
Packaged Dimensions
Packaged Length 41.50 inch (105.410 cm)
Packaged Width 15.50 inch (39.370 cm)
Packaged Height 14.00 inch (35.560 cm)
Packaged Weight 25.00 lb (11.350 kg)
Packaged Volume 5.21 ft3 (0.146 m3)
Pieces Per Pallet 7
Other Information
Country of Origin United States
NMFC Code 125850-01
HTS Code 8708925000
UPC Code 742330005781
