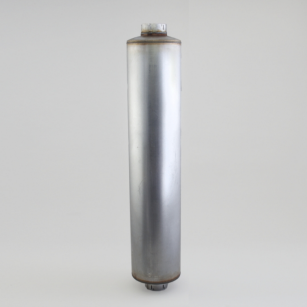

Donaldson Filtration M110849 MUFFLER, ROUND STYLE 1

Attributes
Flow Direction Inlet-Outlet
Inlet Diameter 5.03 inch (127.64 mm)
Outlet Diameter 5.03 inch (127.64 mm)
Body Diameter Maximum 10.93 inch (277.61 mm)
Body Length 50.25 inch (1276.35 mm)
Overall Length 57.00 inch (1447.8 mm)
Rated Flow LR 1773 cfm (50.2 m³/min)
Rated Flow MR 2504 cfm (70.9 m³/min)
Rated Flow HR 2949 cfm (83.5 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 19 dBA
Attenuation HR 25 dBA
Style Style 1
Price Type E
Packaged Dimensions
Packaged Length 58.50 inch (148.590 cm)
Packaged Width 11.50 inch (29.210 cm)
Packaged Height 11.25 inch (28.575 cm)
Packaged Weight 47.26 lb (21.454 kg)
Packaged Volume 4.38 ft3 (0.123 m3)
Pieces Per Pallet 7
Other Information
Country of Origin United States
NMFC Code 125850-01
HTS Code 8708925000
UPC Code 742330117354
