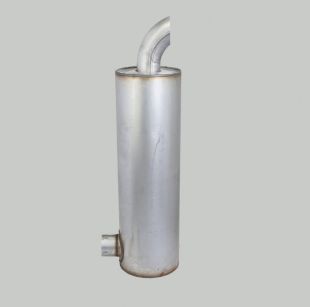

Donaldson Filtration M111024 MUFFLER, ROUND STYLE 3

Attributes
Flow Direction Inlet-Outlet
Inlet Diameter 4.00 inch (101.6 mm)
Outlet Diameter 4.00 inch (101.6 mm)
Body Diameter Maximum 11.08 inch (281.4 mm)
Body Length 36.00 inch (914.4 mm)
Overall Length 44.59 inch (1132.6 mm)
Rated Flow LR 982 cfm (27.8 m³/min)
Rated Flow MR 1391 cfm (39.4 m³/min)
Rated Flow HR 1702 cfm (48.2 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 13 dBA
Attenuation HR 19 dBA
Inlet Clock Position 12:00
Outlet Clock Position 6:00
Style Style 3
Price Type E
Packaged Dimensions
Packaged Length 53.00 inch (134.620 cm)
Packaged Width 14.75 inch (37.452 cm)
Packaged Height 11.75 inch (29.845 cm)
Packaged Weight 20.00 lb (9.080 kg)
Packaged Volume 5.31 ft3 (0.149 m3)
Pieces Per Pallet 9
Other Information
Country of Origin United States
NMFC Code 125850-01
HTS Code 8708925000
UPC Code 742330116050
