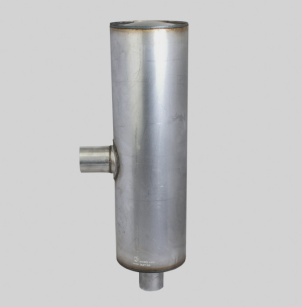

Donaldson Filtration M111025 MUFFLER, ROUND STYLE 4

Attributes
Flow Direction Inlet-Outlet
Inlet Diameter 4.00 inch (101.6 mm)
Outlet Diameter 4.00 inch (101.6 mm)
Body Diameter Maximum 11.08 inch (281.4 mm)
Body Length 36.00 inch (914.4 mm)
Overall Length 41.00 inch (1041.4 mm)
Rated Flow LR 1141 cfm (32.3 m³/min)
Rated Flow MR 1610 cfm (45.6 m³/min)
Rated Flow HR 1974 cfm (55.9 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 15 dBA
Attenuation HR 21 dBA
Outlet Clock Position 6:00
Style Style 4
Price Type E
Packaged Dimensions
Packaged Length 45.00 inch (114.300 cm)
Packaged Width 17.00 inch (43.180 cm)
Packaged Height 14.40 inch (36.576 cm)
Packaged Weight 35.00 lb (15.890 kg)
Packaged Volume 6.38 ft3 (0.179 m3)
Pieces Per Pallet 9
Other Information
Country of Origin United States
NMFC Code 125850-05
HTS Code 8708925000
UPC Code 742330116067
