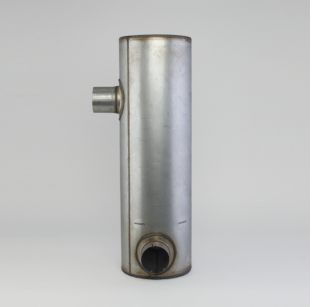

Donaldson Filtration M111026 MUFFLER, ROUND STYLE 6

Attributes
Flow Direction Inlet-Outlet
Inlet Diameter 4.00 inch (101.6 mm)
Outlet Diameter 4.00 inch (101.6 mm)
Body Diameter Maximum 11.08 inch (281.4 mm)
Body Length 35.50 inch (901.7 mm)
Overall Length 36.00 inch (914.4 mm)
Rated Flow LR 1088 cfm (30.8 m³/min)
Rated Flow MR 1540 cfm (43.6 m³/min)
Rated Flow HR 1886 cfm (53.4 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 15 dBA
Attenuation HR 20 dBA
Inlet Clock Position 12:00
Outlet Clock Position 9:00
Style Style 6
Price Type E
Packaged Dimensions
Packaged Length 30.38 inch (77.153 cm)
Packaged Width 15.00 inch (38.100 cm)
Packaged Height 15.00 inch (38.100 cm)
Packaged Weight 50.00 lb (22.700 kg)
Packaged Volume 3.96 ft3 (0.111 m3)
Pieces Per Pallet 9
Other Information
Country of Origin United States
NMFC Code 125850-03
HTS Code 8708925000
UPC Code 742330116074
