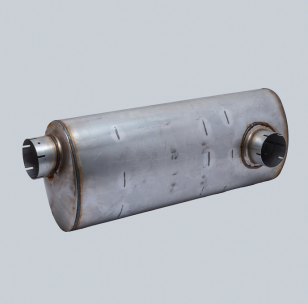

Donaldson Filtration M120235 MUFFLER, OVAL STYLE 3

Attributes
Flow Direction Inlet-Outlet
Inlet Diameter 5.03 inch (127.64 mm)
Outlet Diameter 5.03 inch (127.64 mm)
Body Diameter Minimum 10.00 inch (254 mm)
Body Diameter Maximum 15.00 inch (381 mm)
Body Length 35.87 inch (911.1 mm)
Overall Length 39.87 inch (1012.7 mm)
Rated Flow LR 1211 cfm (34.3 m³/min)
Rated Flow MR 1713 cfm (48.5 m³/min)
Rated Flow HR 2098 cfm (59.4 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 15 dBA
Attenuation HR 20 dBA
Inlet Clock Position 6:00
Outlet Clock Position 9:00
Style Style 3
Price Type E
Packaged Dimensions
Packaged Length 45.38 inch (115.253 cm)
Packaged Width 17.25 inch (43.815 cm)
Packaged Height 13.88 inch (35.243 cm)
Packaged Weight 44.90 lb (20.385 kg)
Packaged Volume 6.28 ft3 (0.176 m3)
Pieces Per Pallet 6
Other Information
Country of Origin United States
NMFC Code 125850-03
HTS Code 8708925000
UPC Code 742330005934
