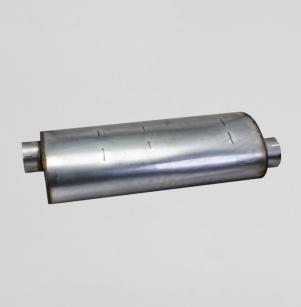

Donaldson Filtration M120365 MUFFLER, OVAL STYLE 2

Attributes
Flow Direction Inlet-Outlet
Inlet Diameter 5.03 inch (127.64 mm)
Outlet Diameter 5.03 inch (127.64 mm)
Body Diameter Minimum 10.00 inch (254 mm)
Body Diameter Maximum 15.00 inch (381 mm)
Body Length 36.00 inch (914.4 mm)
Overall Length 42.50 inch (1079.5 mm)
Rated Flow LR 1307 cfm (37 m³/min)
Rated Flow MR 1847 cfm (52.3 m³/min)
Rated Flow HR 215 cfm (6.1 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 15 dBA
Attenuation HR 20 dBA
Inlet Clock Position 6:00
Outlet Clock Position 12:00
Style Style 2
Price Type E
Packaged Dimensions
Packaged Length 45.13 inch (114.618 cm)
Packaged Width 16.00 inch (40.640 cm)
Packaged Height 11.25 inch (28.575 cm)
Packaged Weight 45.60 lb (20.702 kg)
Packaged Volume 4.70 ft3 (0.132 m3)
Pieces Per Pallet 7
Other Information
Country of Origin United States
NMFC Code 125850-03
HTS Code 8708925000
UPC Code 742330005958
