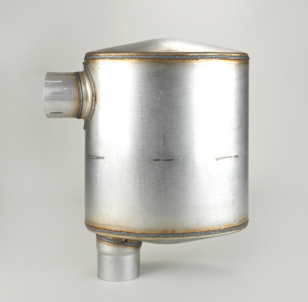

Donaldson Filtration M120382 MUFFLER, OVAL STYLE 3

Attributes
Flow Direction Inlet-Outlet
Inlet Diameter 4.02 inch (102 mm)
Outlet Diameter 3.86 inch (98 mm)
Body Diameter Minimum 10.00 inch (254 mm)
Body Diameter Maximum 15.00 inch (381 mm)
Body Length 15.00 inch (381 mm)
Overall Length 21.57 inch (547.88 mm)
Rated Flow LR 1307 cfm (37 m³/min)
Rated Flow MR 1847 cfm (52.3 m³/min)
Rated Flow HR 2264 cfm (64.1 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 12 dBA
Attenuation HR 18 dBA
Inlet Clock Position 9:00
Outlet Clock Position 9:00
Style Style 3
Price Type E
Packaged Dimensions
Packaged Length 24.10 inch (61.213 cm)
Packaged Width 19.10 inch (48.515 cm)
Packaged Height 11.20 inch (28.447 cm)
Packaged Weight 20.95 lb (9.509 kg)
Packaged Volume 2.98 ft3 (0.084 m3)
Pieces Per Pallet 16
Other Information
Country of Origin United States
NMFC Code 125850-02
HTS Code 8708925000
UPC Code 742330005989
