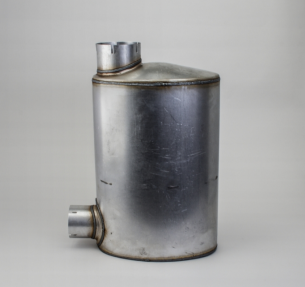

Donaldson Filtration M120566 MUFFLER, OVAL STYLE 3

Attributes
Flow Direction Inlet-Outlet
Inlet Diameter 4.02 inch (102 mm)
Outlet Diameter 5.02 inch (127.63 mm)
Body Diameter Minimum 10.00 inch (254 mm)
Body Diameter Maximum 15.00 inch (381 mm)
Body Length 20.75 inch (527 mm)
Overall Length 25.25 inch (641.4 mm)
Rated Flow LR 1271 cfm (36 m³/min)
Rated Flow MR 1798 cfm (50.9 m³/min)
Rated Flow HR 2204 cfm (62.4 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 12 dBA
Attenuation HR 17 dBA
Inlet Clock Position 3:00
Outlet Clock Position 3:00
Style Style 3
Price Type E
Packaged Dimensions
Packaged Length 31.50 inch (80.010 cm)
Packaged Width 19.00 inch (48.260 cm)
Packaged Height 11.00 inch (27.940 cm)
Packaged Weight 27.54 lb (12.501 kg)
Packaged Volume 3.81 ft3 (0.107 m3)
Pieces Per Pallet 12
Other Information
Country of Origin United States
NMFC Code 125850-03
HTS Code 8708925000
UPC Code 742330006023
