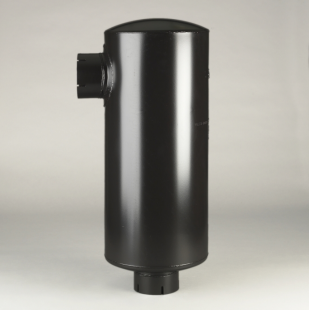

Donaldson Filtration M120749 MUFFLER, ROUND STYLE 3/STYLE 4

Attributes
Flow Direction Either
Inlet Diameter 5.03 inch (127.64 mm)
Outlet Diameter 5.03 inch (127.64 mm)
Body Diameter Maximum 11.84 inch (300.7 mm)
Body Length 25.75 inch (654 mm)
Overall Length 31.69 inch (804.9 mm)
Rated Flow LR 1762 cfm (49.9 m³/min)
Rated Flow MR 2447 cfm (69.3 m³/min)
Rated Flow HR 2447 cfm (69.3 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.01 inch Hg (51 mm Hg)
Attenuation LR 12 dBA
Attenuation HR 18 dBA
Inlet Clock Position 6:00
Style Style 3/Style 4
Price Type E
Packaged Dimensions
Packaged Length 32.50 inch (82.550 cm)
Packaged Width 15.25 inch (38.735 cm)
Packaged Height 12.00 inch (30.480 cm)
Packaged Weight 29.49 lb (13.388 kg)
Packaged Volume 3.44 ft3 (0.096 m3)
Pieces Per Pallet 9
Other Information
Country of Origin United States
NMFC Code 125850-03
HTS Code 8708925000
UPC Code 742330114063
