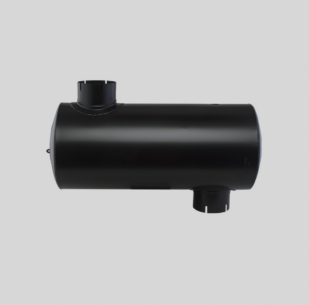

Donaldson Filtration M120751 MUFFLER, ROUND STYLE 6

Attributes
Flow Direction Inlet-Outlet
Inlet Diameter 5.03 inch (127.64 mm)
Outlet Diameter 5.03 inch (127.64 mm)
Body Diameter Maximum 11.84 inch (300.74 mm)
Body Length 25.50 inch (647.7 mm)
Overall Length 29.14 inch (740.16 mm)
Rated Flow LR 1762 cfm (49.9 m³/min)
Rated Flow MR 2447 cfm (69.3 m³/min)
Rated Flow HR 3097 cfm (87.7 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 12 dBA
Attenuation HR 18 dBA
Inlet Clock Position 6:00
Outlet Clock Position 12:00
Style Style 6
Price Type E
Packaged Dimensions
Packaged Length 31.00 inch (78.740 cm)
Packaged Width 18.00 inch (45.720 cm)
Packaged Height 12.00 inch (30.480 cm)
Packaged Weight 27.31 lb (12.396 kg)
Packaged Volume 3.88 ft3 (0.109 m3)
Pieces Per Pallet 9
Other Information
Country of Origin United States
NMFC Code 125850-03
HTS Code 8708925000
UPC Code 742330114087
