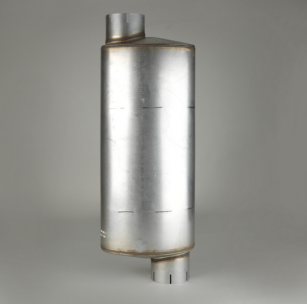

Donaldson Filtration M122300 MUFFLER, OVAL STYLE 2

Attributes
Flow Direction Inlet-Outlet
Inlet Diameter 6.04 inch (153.39 mm)
Outlet Diameter 6.04 inch (153.39 mm)
Body Diameter Minimum 10.00 inch (254 mm)
Body Diameter Maximum 15.00 inch (381 mm)
Body Length 31.75 inch (806.45 mm)
Overall Length 42.50 inch (1079.5 mm)
Rated Flow LR 2158 cfm (61.1 m³/min)
Rated Flow MR 3051 cfm (86.4 m³/min)
Rated Flow HR 3736 cfm (105.8 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 10 dBA
Attenuation HR 15 dBA
Inlet Clock Position 3:00
Outlet Clock Position 9:00
Style Style 2
Price Type E
Packaged Dimensions
Packaged Length 45.00 inch (114.300 cm)
Packaged Width 16.00 inch (40.640 cm)
Packaged Height 11.00 inch (27.940 cm)
Packaged Weight 30.00 lb (13.620 kg)
Packaged Volume 4.58 ft3 (0.128 m3)
Pieces Per Pallet 12
Other Information
Country of Origin United States
NMFC Code 125850-01
HTS Code 8708925000
UPC Code 742330006054
