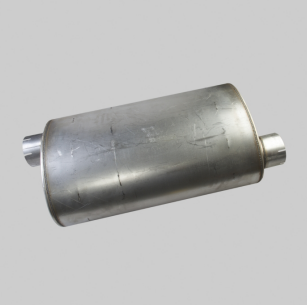

Donaldson Filtration M170101 MUFFLER, OVAL STYLE 2

Attributes
Flow Direction Inlet-Outlet
Inlet Diameter 6.04 inch (153.39 mm)
Outlet Diameter 6.04 inch (153.39 mm)
Body Diameter Minimum 14.12 inch (358.65 mm)
Body Diameter Maximum 21.12 inch (536.45 mm)
Body Length 35.00 inch (889 mm)
Overall Length 47.00 inch (1193.8 mm)
Rated Flow LR 2373 cfm (67.2 m³/min)
Rated Flow MR 3355 cfm (95 m³/min)
Rated Flow HR 4111 cfm (116.4 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 12 dBA
Attenuation HR 18 dBA
Inlet Clock Position 3:00
Outlet Clock Position 9:00
Style Style 2
Price Type E
Packaged Dimensions
Packaged Length 51.38 inch (130.505 cm)
Packaged Width 24.75 inch (62.865 cm)
Packaged Height 16.25 inch (41.275 cm)
Packaged Weight 105.00 lb (47.670 kg)
Packaged Volume 11.96 ft3 (0.335 m3)
Pieces Per Pallet 2
Other Information
Country of Origin United States
NMFC Code 125850-01
HTS Code 8708925000
UPC Code 742330006078
