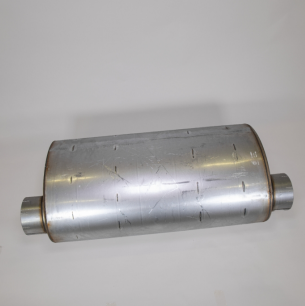

Donaldson Filtration M190002 MUFFLER, OVAL STYLE 2

Attributes
Flow Direction Inlet-Outlet
Inlet Diameter 7.99 inch (203 mm)
Outlet Diameter 7.99 inch (203 mm)
Body Diameter Minimum 15.98 inch (406 mm)
Body Diameter Maximum 24.02 inch (610 mm)
Body Length 45.00 inch (1143 mm)
Overall Length 57.01 inch (1448 mm)
Rated Flow LR 3666 cfm (103.8 m³/min)
Rated Flow MR 5184 cfm (146.8 m³/min)
Rated Flow HR 6350 cfm (179.8 m³/min)
Back Pressure Low-Range 0.98 inch Hg (25 mm Hg)
Back Pressure Mid-Range 2.01 inch Hg (51 mm Hg)
Back Pressure High-Range 2.99 inch Hg (76 mm Hg)
Attenuation LR 11 dBA
Attenuation HR 15 dBA
Inlet Clock Position 3:00
Style Style 2
Price Type E
Packaged Dimensions
Packaged Length 59.00 inch (149.860 cm)
Packaged Width 28.50 inch (72.390 cm)
Packaged Height 19.00 inch (48.260 cm)
Packaged Weight 200.00 lb (90.800 kg)
Packaged Volume 18.49 ft3 (0.518 m3)
Pieces Per Pallet 1
Other Information
Country of Origin United States
NMFC Code 125850-01
HTS Code 8708925000
UPC Code 742330006085
