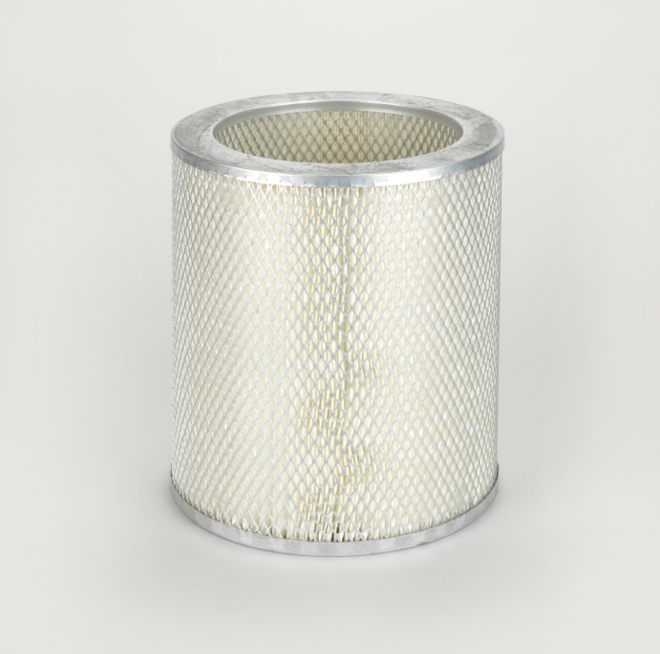

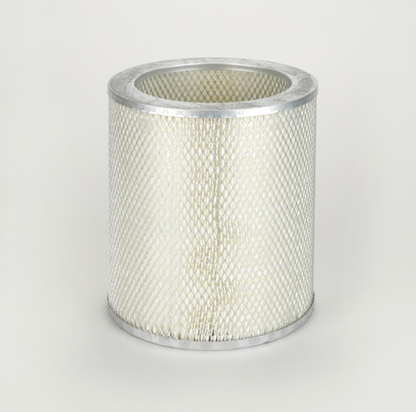

Donaldson Filtration P015838.AIR FILTER, PRIMARY ROUND

Why Choose Donaldson Air Filters?

Strong, reliable gasket is compressed against the air cleaner

housing to create a tight seal.

• High-efficiency cellulose media performs across a wide

range of heavy-duty engine applications.

• Corrosion resistant, coated steel liners support media

during operation and help maximize airflow.

• Pleatloc™ feature ensures uniform pleat spacing and

prevents media from bunching to promote longer service

life.

Attributes

Outer Diameter 10.40 inch (264.16 mm)

Inner Diameter 7.79 inch (197.87 mm)

Length 12.00 inch (304.8 mm)

Efficiency 99.9

Efficiency Test Std ISO 5011

Type Primary

Style Round

Media Type CellulosePrice Type F

Packaged Dimensions

Packaged Length 11.30 inch (28.702 cm)

Packaged Width 11.20 inch (28.448 cm)

Packaged Height 13.40 inch (34.036 cm)

Packaged Weight 4.91 lb (2.229 kg)

Packaged Volume 0.98 ft3 (0.027 m3)

Pieces Per Pallet 36

Other Information

Country of Origin United States

NMFC Code 069100-02

HTS Code 8421310000

UPC Code 742330006382
