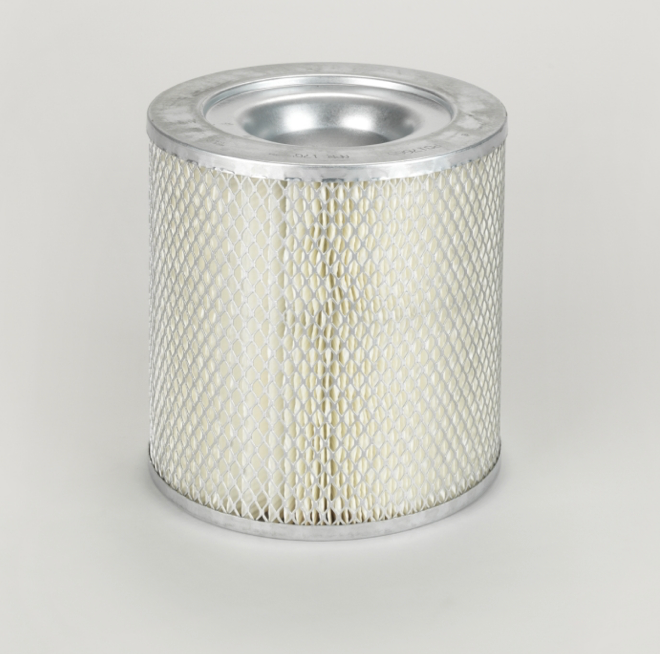

Donaldson Filtration P017665.AIR FILTER, PRIMARY ROUND

Why Choose Donaldson Air Filters?

Strong, reliable gasket is compressed against the air cleaner

housing to create a tight seal.

• High-efficiency cellulose media performs across a wide

range of heavy-duty engine applications.

• Corrosion resistant, coated steel liners support media

during operation and help maximize airflow.

• Pleatloc™ feature ensures uniform pleat spacing and

prevents media from bunching to promote longer service

life.

Attributes

Outer Diameter 8.40 inch (213.36 mm)

Inner Diameter 5.78 inch (146.81 mm)

Length 9.00 inch (228.6 mm)

Bolt Hole Diameter 0.53 inch (13.46 mm)

Efficiency 99.9

Efficiency Test Std ISO 5011

Type Primary

Style RoundMedia Type Cellulose

Price Type F

Packaged Dimensions

Packaged Length 9.84 inch (24.994 cm)

Packaged Width 9.84 inch (24.994 cm)

Packaged Height 11.02 inch (27.991 cm)

Packaged Weight 3.18 lb (1.444 kg)

Packaged Volume 0.62 ft3 (0.017 m3)

Pieces Per Pallet 18

Other Information

Country of Origin United States

NMFC Code 093880

HTS Code 8421310000

UPC Code 742330006627
