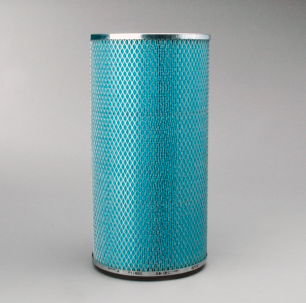

Donaldson Filtration P114931 AIR FILTER, SAFETY

Why Choose Donaldson Safety Filters?
Safety filters have two functions: to act as a backup to the
primary filter and to protect the engine during primary filter
servicing.
• Serve as a backup filter in case of primary filter damage or
improper installation.
• Prevent contaminants from entering the clean side of the
air intake system during primary filter servicing.
• Designed to plug rapidly if contamination finds its way past
the primary filter, alerting operators about an issue.
• Recommend that safety filters are replaced with every third
primary filter change unless there has been a failure of the
primary filter.
Attributes
Overall Length 17.04 inch (432.9 mm)
Outer Diameter 8.66 inch (219.96 mm)
Inner Diameter 7.06 inch (179.2 mm)
Length 16.66 inch (423.2 mm)
Gasket ID 7.50 inch (190.5 mm)
Efficiency 99.6
Efficiency Test Std ISO 5011
Rated Flow LR 1271 cfm (36 m³/min)
Rated Flow HR 812 cfm (23 m³/min)
Family STG
Primary Application DONALDSON STG16
Type Safety
Style Round
Media Type Safety
Flow Direction Outside-In
Price Type F
Packaged Dimensions
Packaged Length 9.30 inch (23.622 cm)
Packaged Width 9.20 inch (23.368 cm)
Packaged Height 18.00 inch (45.720 cm)
Packaged Weight 4.19 lb (1.902 kg)
Packaged Volume 0.89 ft3 (0.025 m3)
Pieces Per Pallet 60
Other Information
Country of Origin United States
NMFC Code 069100-02
HTS Code 8421310000
UPC Code 742330009178
