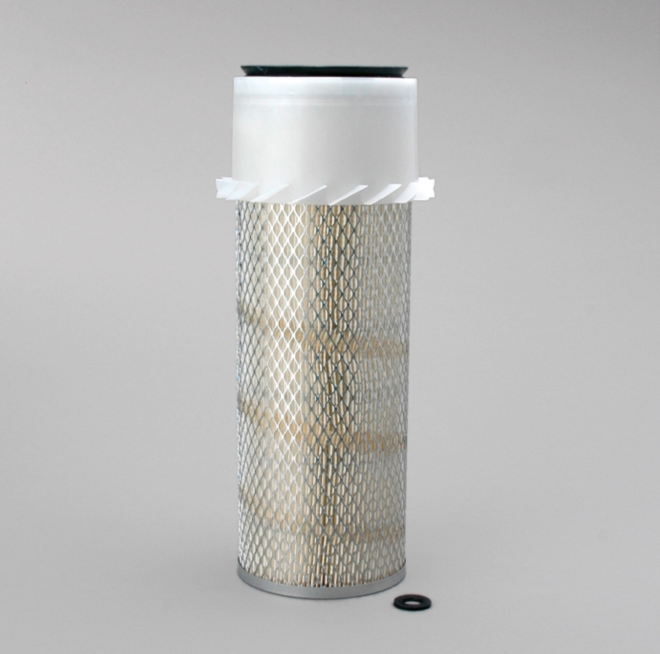

Donaldson Filtration P148586.AIR FILTER, PRIMARY FINNED

Why Choose Donaldson Air Filters?

Strong, reliable gasket is compressed against the air cleaner

housing to create a tight seal.

• High-efficiency cellulose media performs across a wide

range of heavy-duty engine applications.

• Corrosion resistant, coated steel liners support media

during operation and help maximize airflow.

• Pleatloc™ feature ensures uniform pleat spacing and

prevents media from bunching to promote longer service

life.

Attributes

Outer Diameter 5.24 inch (133.2 mm)

Inner Diameter 3.24 inch (82.4 mm)

Length 15.00 inch (381 mm)

Minor OD 0.66 inch (16.76 mm)

Efficiency 99.9

Efficiency Test Std ISO 5011

Family FHG

Type PrimaryStyle Finned

Media Type Cellulose

Price Type F

Packaged Dimensions

Packaged Length 6.90 inch (17.526 cm)

Packaged Width 7.10 inch (18.034 cm)

Packaged Height 16.40 inch (41.656 cm)

Packaged Weight 2.93 lb (1.328 kg)

Packaged Volume 0.47 ft3 (0.013 m3)

Pieces Per Pallet 108

Other Information

Country of Origin Mexico

NMFC Code 069100-01

HTS Code 8421310000

UPC Code 742330013137
