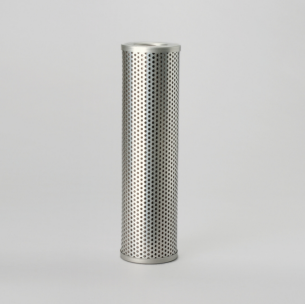

Donaldson Filtration P161571 HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters
• High-performance Hydraulic Cartridges utilize Donaldson
media technology which undergoes stringent design and
testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed
OEM specifications.
Attributes
Outer Diameter 4.39 inch (111.51 mm)
Inner Diameter 2.45 inch (62.23 mm)
Length 16.00 inch (406.4 mm)
Efficiency Beta 1000 22 micron
Collapse Burst 100 psi (6.9 bar)
Style Cartridge
Series HDK06
Media Type Synthetic
Price Type FH
Primary Application INGERSOLL RAND 52263209
Packaged Dimensions
Packaged Length 4.90 inch (12.446 cm)
Packaged Width 4.80 inch (12.192 cm)
Packaged Height 16.70 inch (42.418 cm)
Packaged Weight 3.37 lb (1.530 kg)
Packaged Volume 0.23 ft3 (0.006 m3)
Pieces Per Pallet 160
Other Information
Country of Origin United States
NMFC Code 133320
HTS Code 8421290040
UPC Code 742330014783
