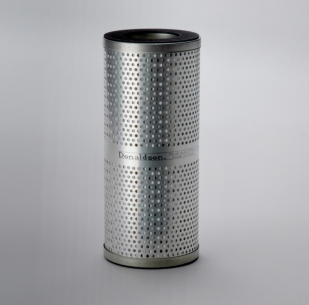

Donaldson Filtration P164200 HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters
• High-performance Hydraulic Cartridges utilize Donaldson
media technology which undergoes stringent design and
testing which sets the standard in filtration performance.
• Donaldson Media Formulations provide superior hydraulic
system protection.
• Donaldson offers the largest selection of replacement
hydraulic cartridges for greater contamination control.
• A variety of WilFit cartridges which meet and/or exceed
OEM specifications.
Attributes
Outer Diameter 4.00 inch (101.6 mm)
Inner Diameter 2.30 inch (58.4 mm)
Length 9.13 inch (232 mm)
Overall Length 9.25 inch (235 mm)
Efficiency Beta 1000 13 micron
Collapse Burst 100 psi (6.9 bar)
Style Cartridge
Media Type Synthetic
Price Type F
Packaged Dimensions
Packaged Length 4.50 inch (11.430 cm)
Packaged Width 4.30 inch (10.922 cm)
Packaged Height 9.30 inch (23.622 cm)
Packaged Weight 1.38 lb (0.624 kg)
Packaged Volume 0.10 ft3 (0.003 m3)
Pieces Per Pallet 216
Other Information
Country of Origin United States
NMFC Code 069100-12
HTS Code 8421290040
UPC Code 742330015919
Proposition 65 Notice for California:
WARNING
This product can expose you to chemicals
including Glass Wool Fibers, which are
known to the State of California to cause
cancer. For more information go to
www.P65Warnings.ca.gov.
