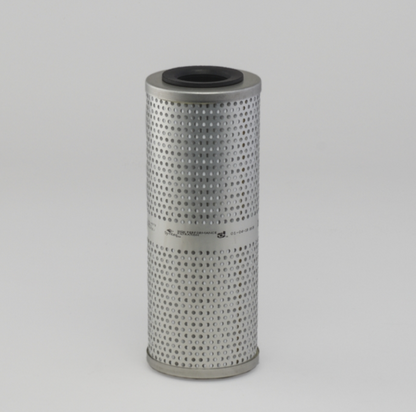

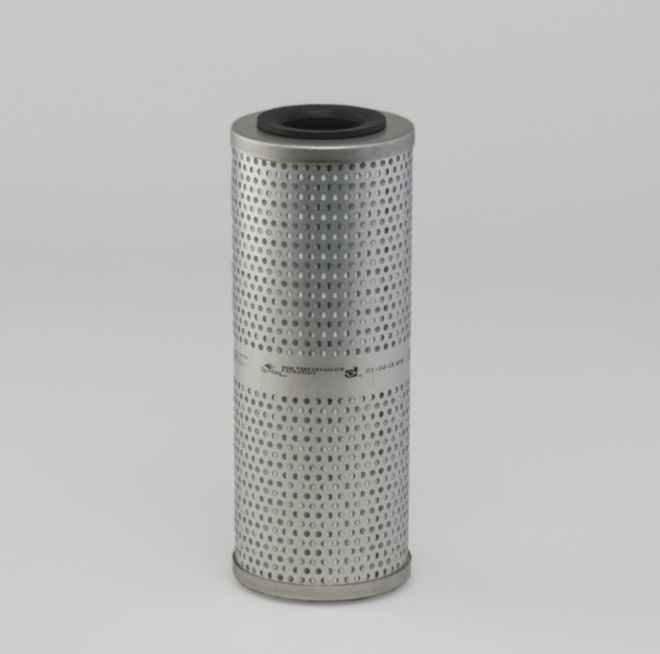

Donaldson Filtration P164812.HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters

• High-performance Hydraulic Cartridges utilize Donaldson

media technology which undergoes stringent design and

testing which sets the standard in filtration performance.

• Donaldson Media Formulations provide superior hydraulic

system protection.

• Donaldson offers the largest selection of replacement

hydraulic cartridges for greater contamination control.

• A variety of WilFit cartridges which meet and/or exceed

OEM specifications.

Attributes

Outer Diameter 3.54 inch (90 mm)

Inner Diameter 1.61 inch (41 mm)

Length 9.02 inch (229.11 mm)

Efficiency Beta 1000 23 micron

Collapse Burst 125 psi (8.6 bar)

Style Cartridge

Media Type Synthetic

Price Type FHPackaged Dimensions

Packaged Length 9.84 inch (24.994 cm)

Packaged Width 3.94 inch (10.008 cm)

Packaged Height 3.94 inch (10.008 cm)

Packaged Weight 1.15 lb (0.522 kg)

Packaged Volume 0.09 ft3 (0.003 m3)

Pieces Per Pallet 48

Other Information

Country of Origin United States

NMFC Code 133320

HTS Code 8421290065

UPC Code 742330016572
