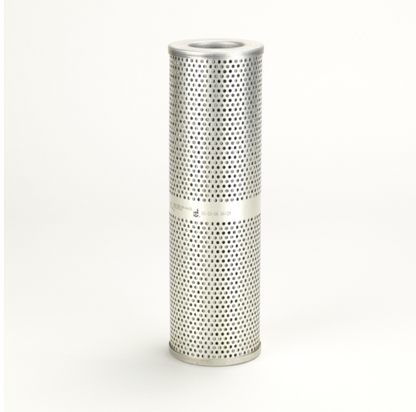

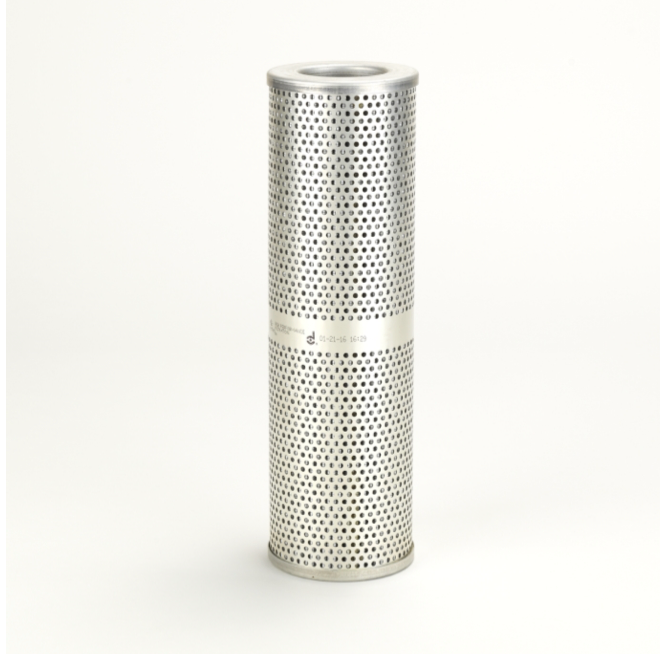

Donaldson Filtration P165166.HYDRAULIC FILTER, CARTRIDGE

Why Choose Donaldson Cartridge Filters

• High-performance Hydraulic Cartridges utilize Donaldson

media technology which undergoes stringent design and

testing which sets the standard in filtration performance.

• Donaldson Media Formulations provide superior hydraulic

system protection.

• Donaldson offers the largest selection of replacement

hydraulic cartridges for greater contamination control.

• A variety of WilFit cartridges which meet and/or exceed

OEM specifications.

Attributes

Outer Diameter 3.76 inch (95.5 mm)

Inner Diameter 1.72 inch (43.67 mm)

Length 12.80 inch (325.12 mm)

Efficiency Beta 1000 23 micron

Collapse Burst 200 psi (13.8 bar)

Style Cartridge

Media Type Synthetic

Price Type FHPackaged Dimensions

Packaged Length 4.30 inch (10.922 cm)

Packaged Width 4.30 inch (10.922 cm)

Packaged Height 13.60 inch (34.544 cm)

Packaged Weight 2.40 lb (1.090 kg)

Packaged Volume 0.15 ft3 (0.004 m3)

Pieces Per Pallet 21

Other Information

Country of Origin United States

NMFC Code 133320

HTS Code 8421290040

UPC Code 742330016978

Proposition 65 Notice for California:

WARNING

This product can expose you to chemicals

including Formaldehyde, which are known

to the State of California to cause cancer. For

more information go to

www.P65Warnings.ca.gov.
