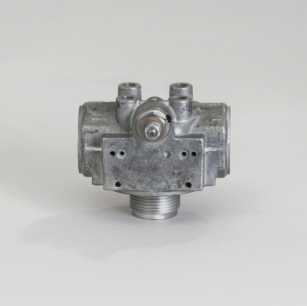

Donaldson Filtration P165537 HEAD ASSEMBLY, HMK04 DURAMAX

Attributes
Length 4.00 inch (101.6 mm)
Height 3.38 inch (85.85 mm)
Inlet Size SAE-16
Outlet Size SAE-16
Filter-to-Head Thread 1 3/8-12 UN
Bypass Valve Yes
Bypass Valve Setting LR 25 psi (1.7 bar)
Series HMK04/24
Brand Duramax®
Price Type H
Packaged Dimensions
Packaged Length 4.50 inch (11.430 cm)
Packaged Width 3.80 inch (9.652 cm)
Packaged Height 4.40 inch (11.176 cm)
Packaged Weight 1.45 lb (0.658 kg)
Packaged Volume 0.04 ft3 (0.001 m3)
Pieces Per Pallet 93
Other Information
Country of Origin United States
NMFC Code 133320
HTS Code 8421990180
UPC Code 742330017319
